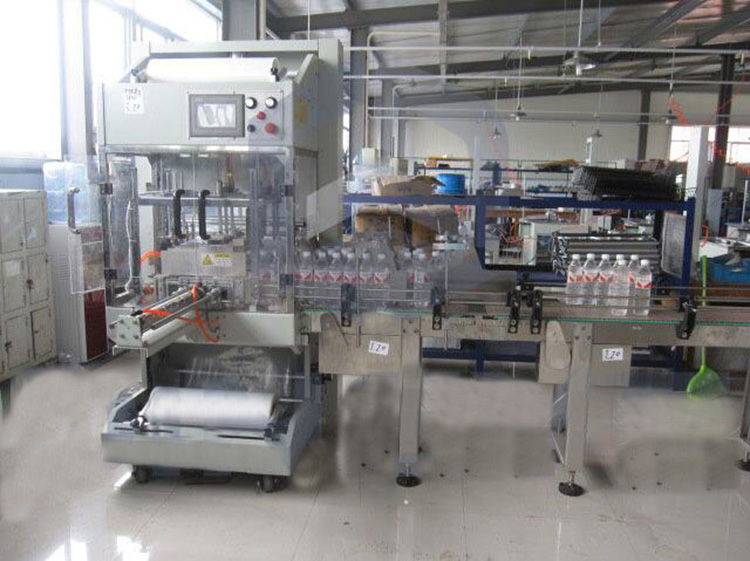

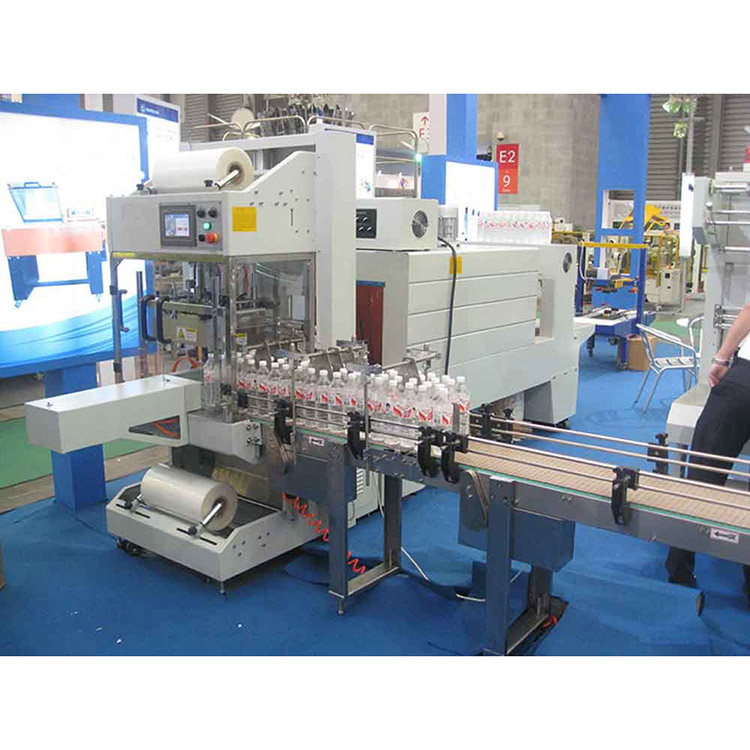

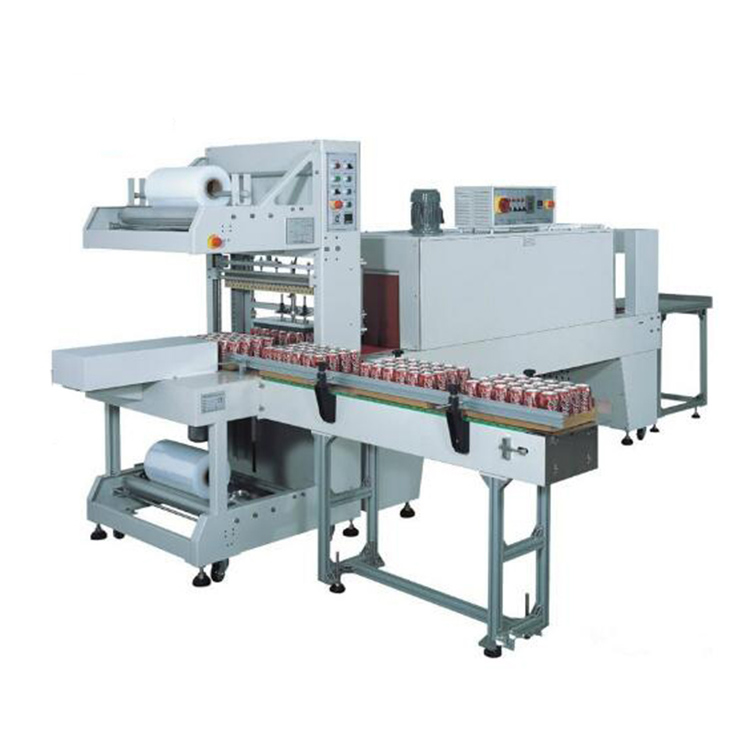

Description of water bottle wrapping machine shrink packaging tunnel machine
Features of heat shrinkable wrapping machine sleeve sealing machine
1. Operating through touch screen with friendly interface convenient for man-machine communication and operation.
2. Pallet-free packaging adequate for package of different bottle sizes and in different combinations.

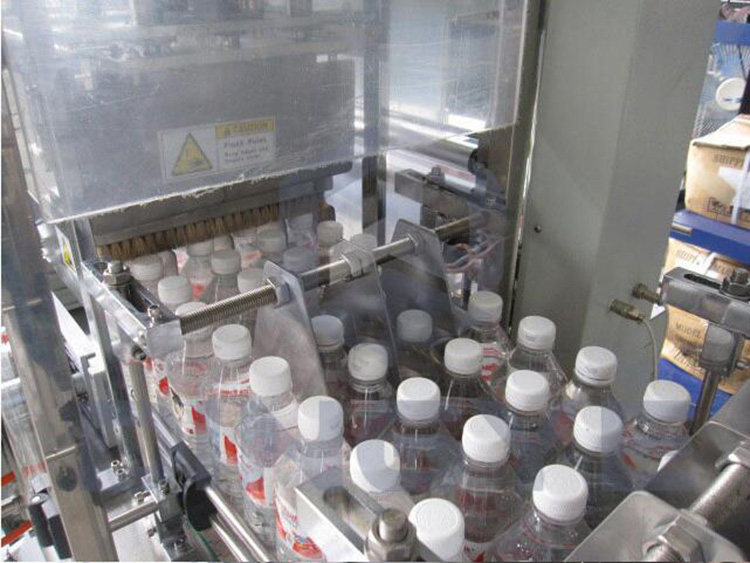

3. With automatic functions of bottle transfer and arrange,membrane packing,sealing and cut,shrinkage,cooling and shaping,etc.
4. Using advanced constant temperatire membrane heating binding technology with smooth and secure seal.
5. The quick seal cooling structure guarantee that the seal has a higher strength
6. Adopt with PLC automatic program circulation control with stable and reliable performance.
7. The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss
8. All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
Specifications:
Model | QSJ5040 | Model | BSE5040 |
Voltage | 220/380V, 50-60Hz | Voltage | 220V/380V, 50-60HZ |
Power | 3KW | Power | 20KW |
Max packing size | 420(L)×300(W)×350(H)mm | Conveyer speed | 0-10m/min |
Min packing size | 250(L)×50(W)×100(H)mm | Tunnel size(L*W*H) | 1500*500*400MM |
Packing speed | 0-10times/min | Conveyer loading | Max 30kg |
Front conveyor | 900(L)×410(W)×400(H)mm | Machine weight | 470KG |
Motor loading | 50 kg | Machine size | 2500*820*1680MM |
Cutter length | 600mm | | |
Weight of film roller | ≤30kg | | |
Working pressure | 0.4-0.6 Mpa | | |
Machine weight | 370kg | | |

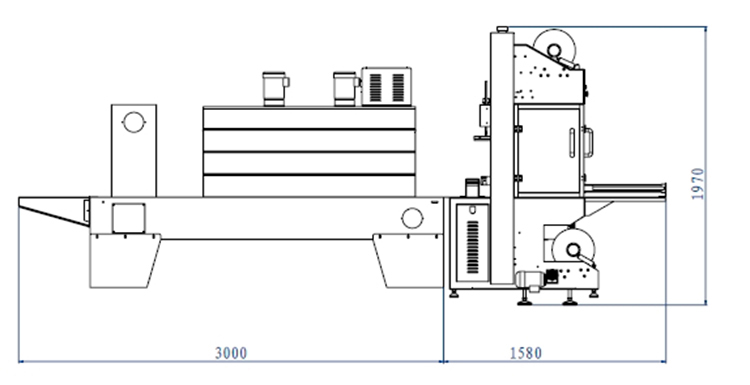

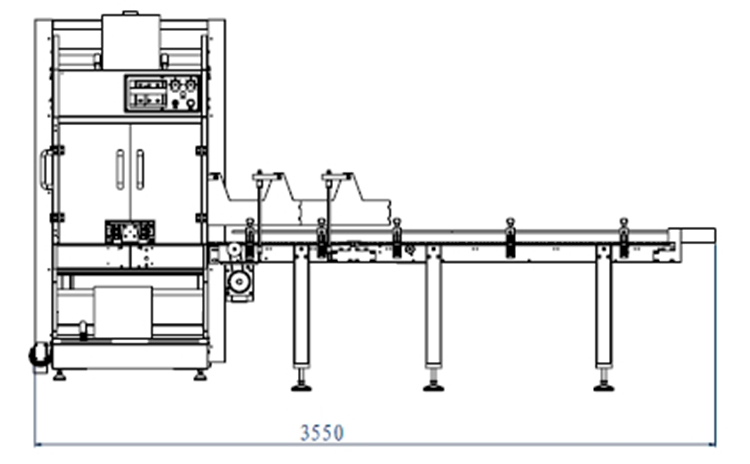

Dimension | 1060(L)*1600(W)*1930(H)mm | | |
