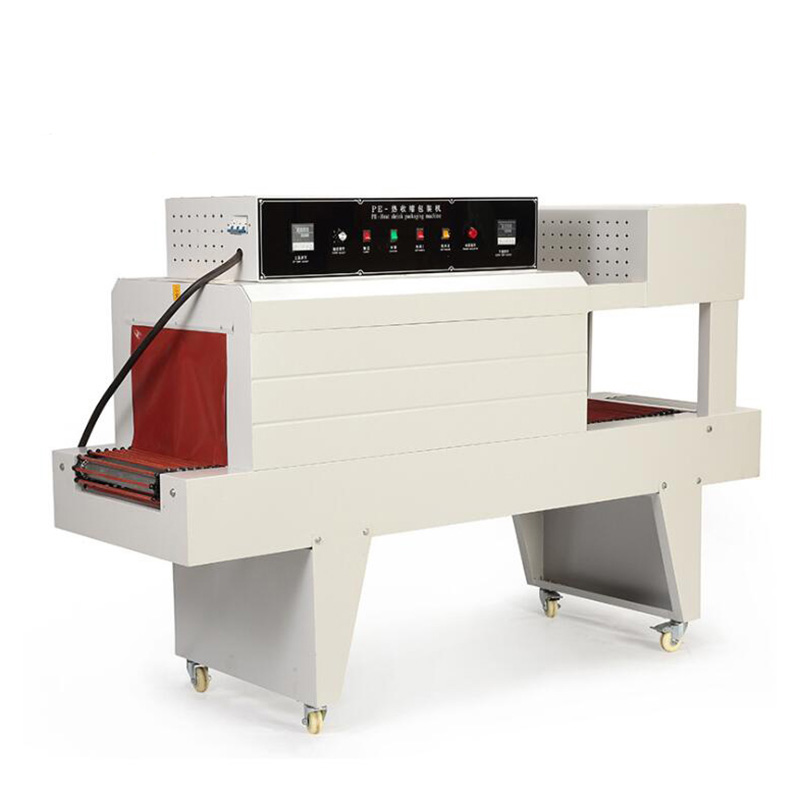

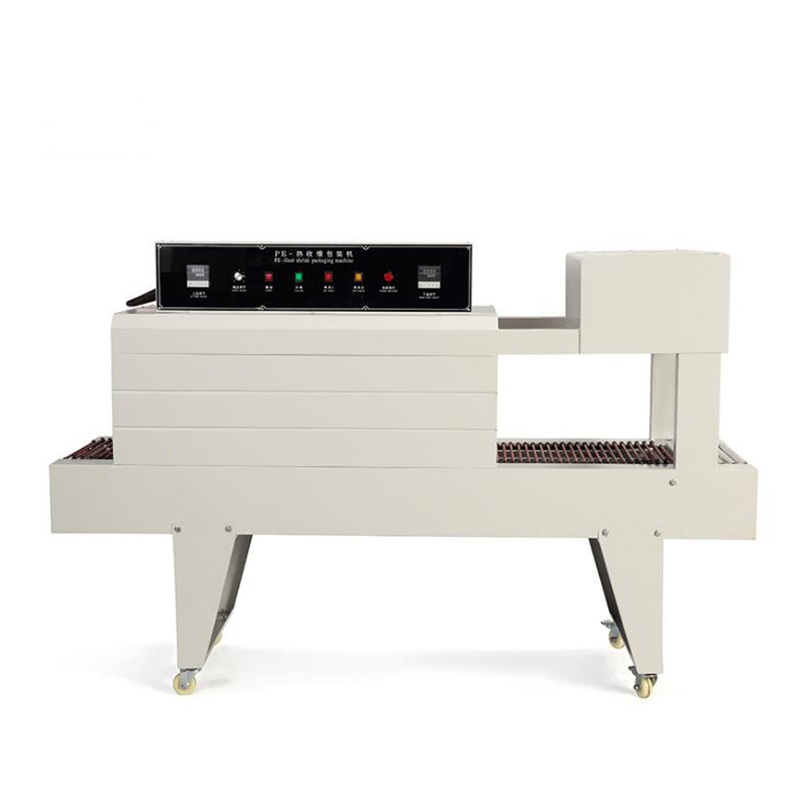

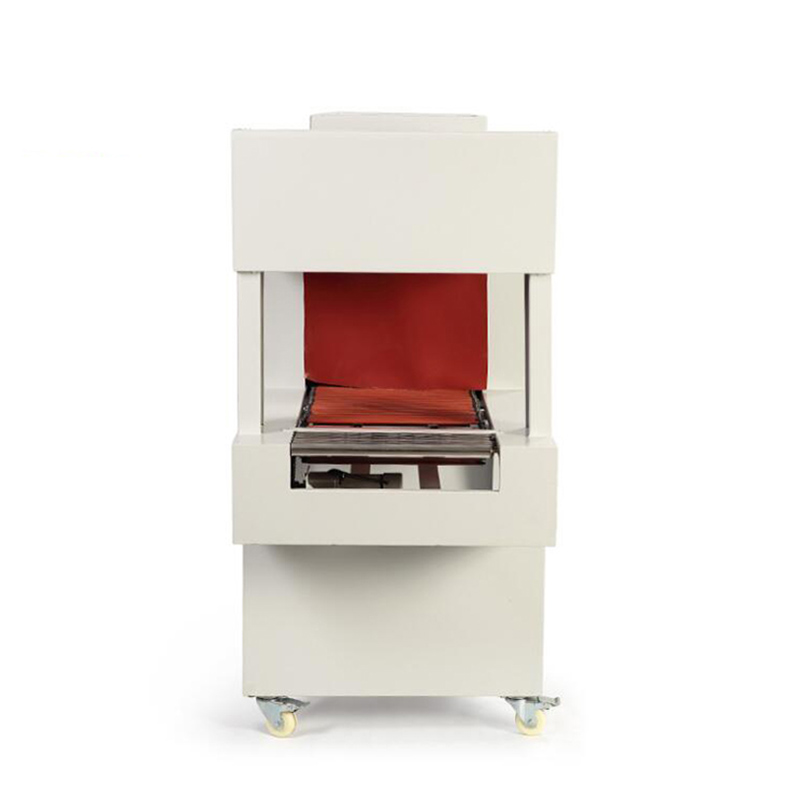

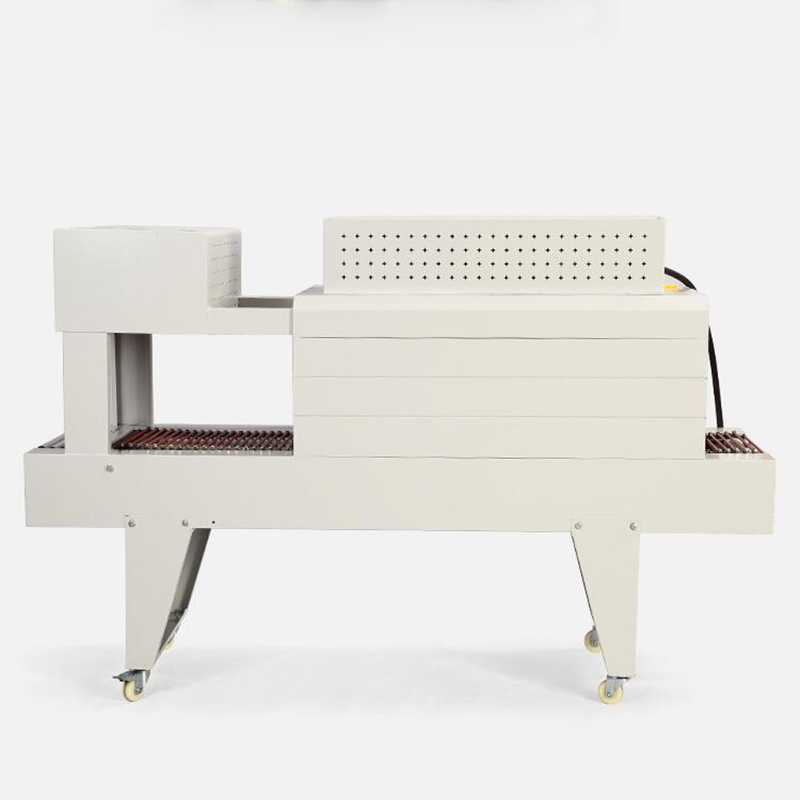

Description of PE film packaging machine heat shrink tunnel
Features of PE shrink packaging wrapping machine
The PE series film shrink packaging machine is designed especially for PE shrink film. However it is suitable for other types shrink films.

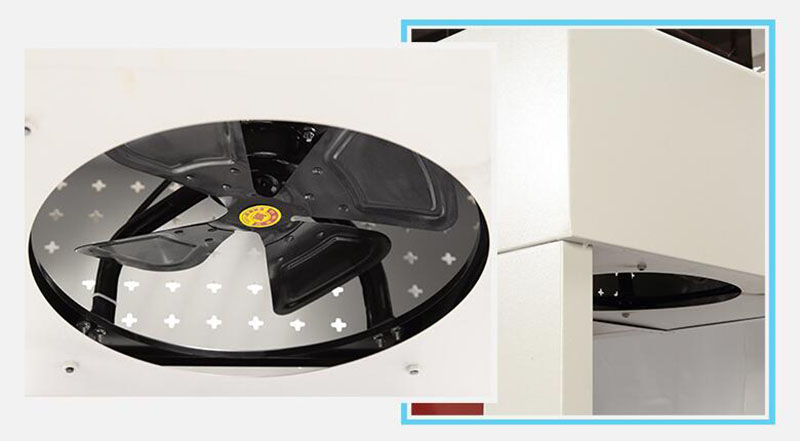

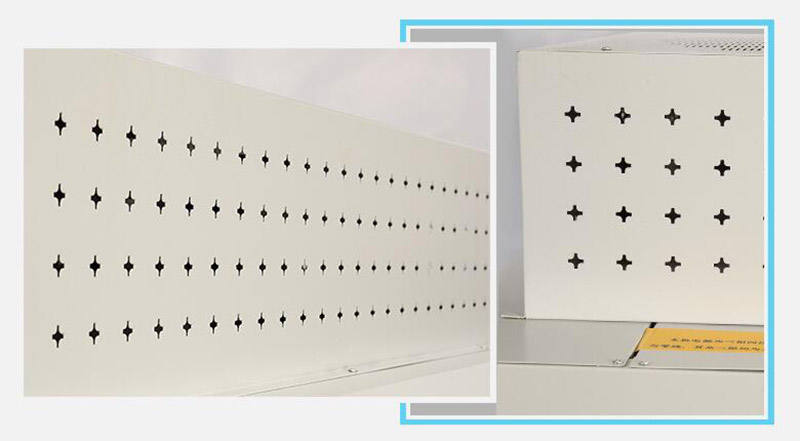

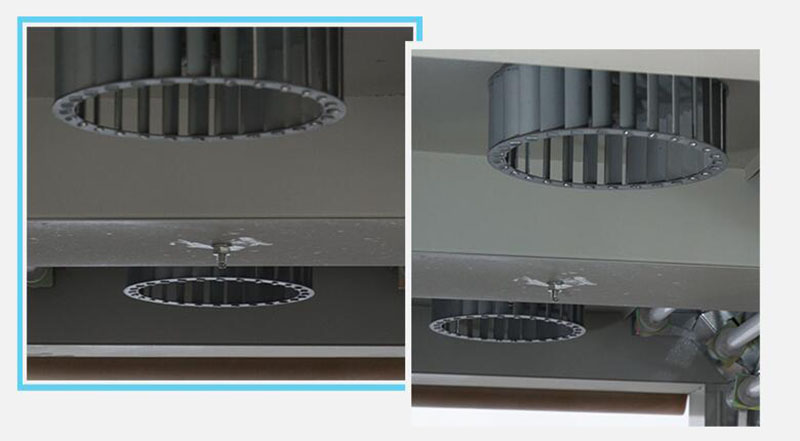

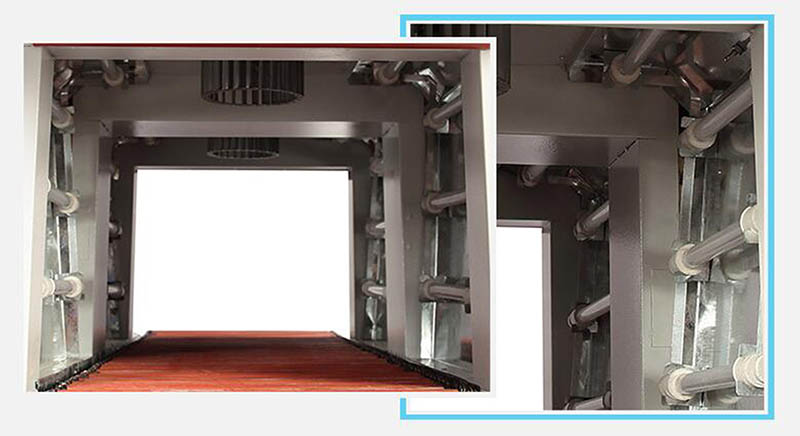

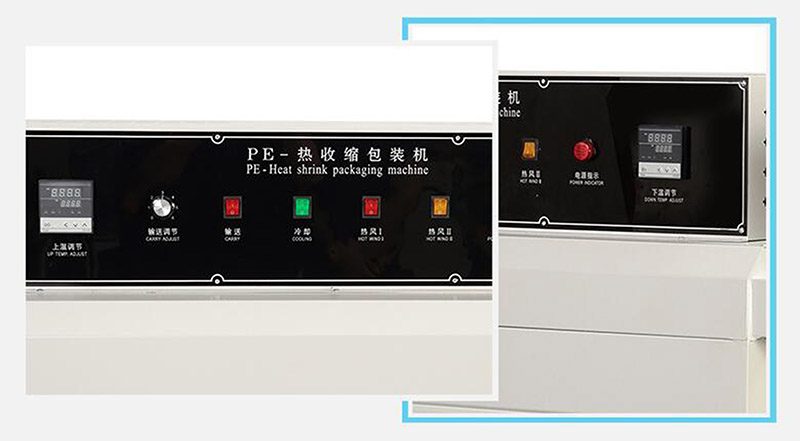

The machine adopts digital temperature controller, which makes operation easier. Quartz heating pipes are located on the top, bottom and sides of the shrinking tunnel. Two fans in electricity box cools down electricity box in order to protect electronics. Conveyor motor cools down by fan underneath. The powerful fan produces even hot airflow inside of shrink tunnel. The speed of the conveyer is adjustable.

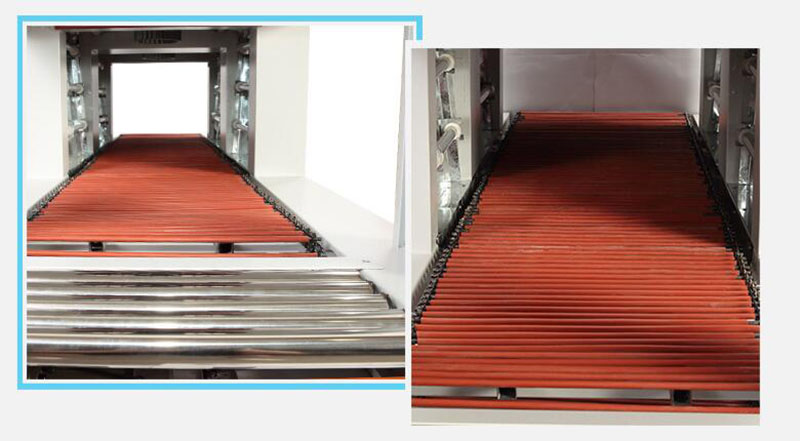

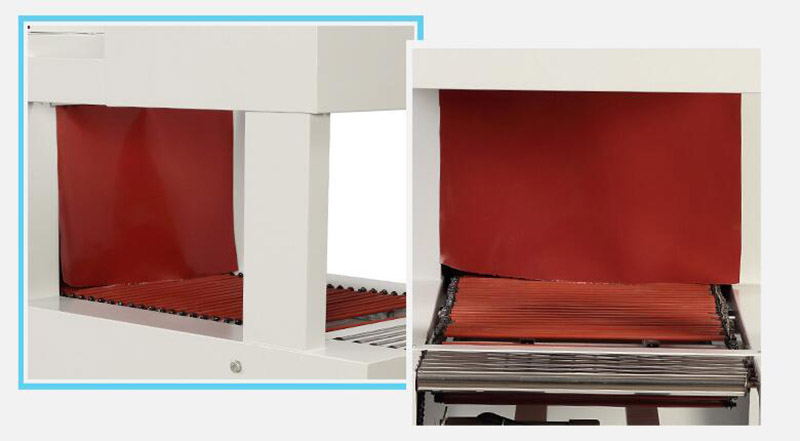

Conveyor has option of chain roller and iron net conveyor for choice.
Specifications:
Model | PE4535 | PE5040 | PE6040 |
Voltage (V/Hz) | 380V 50/60Hz |
Power (kw) | 20 | 25 | 30 |
Conveyor speed (m/min) | 0-10 |
Temperature (℃) | 0-300 |
Tunnel size (L*W*H)(mm) | 1200x450x350 | 1500x500x400 | 1500x600x400 |
Conveyor loading (kg) | 15 |
Dimension (mm) | 700x1520x2200 | 750x1520x2500 | 850x1520x2800 |
Applicable shrink film | PE, PVC, POF |
