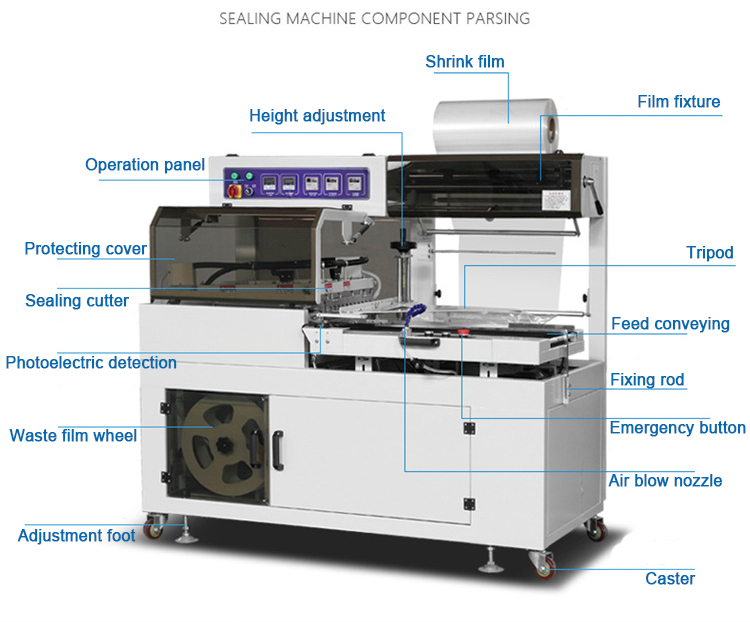

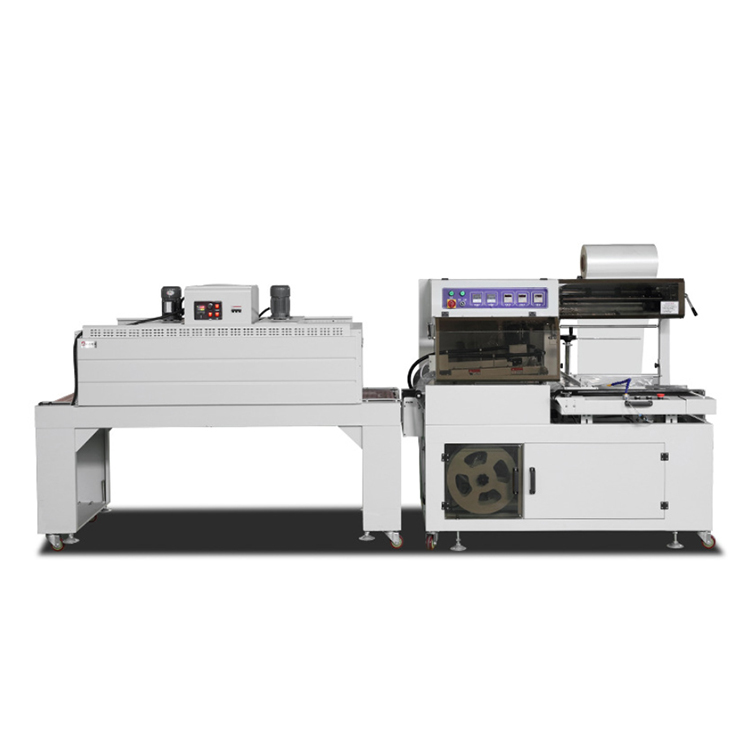

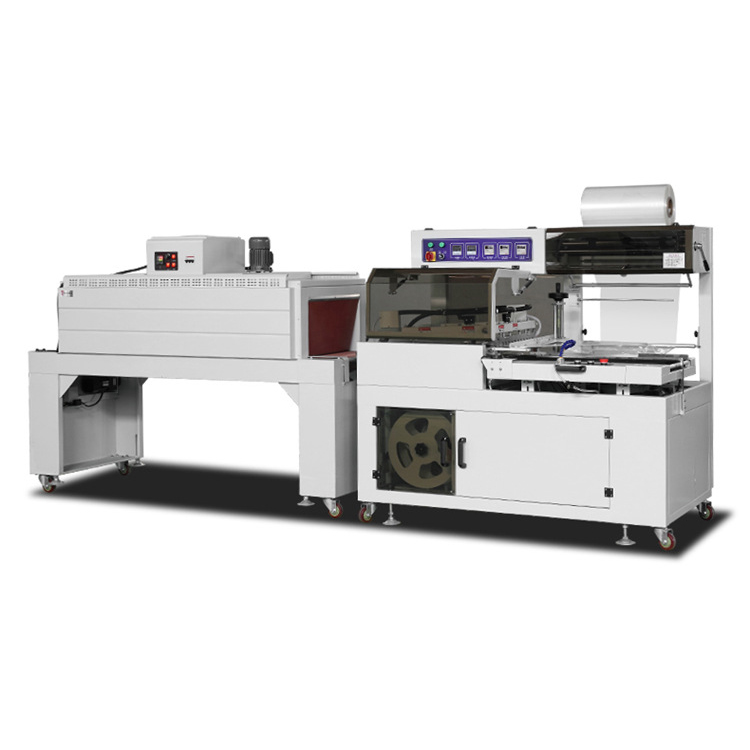

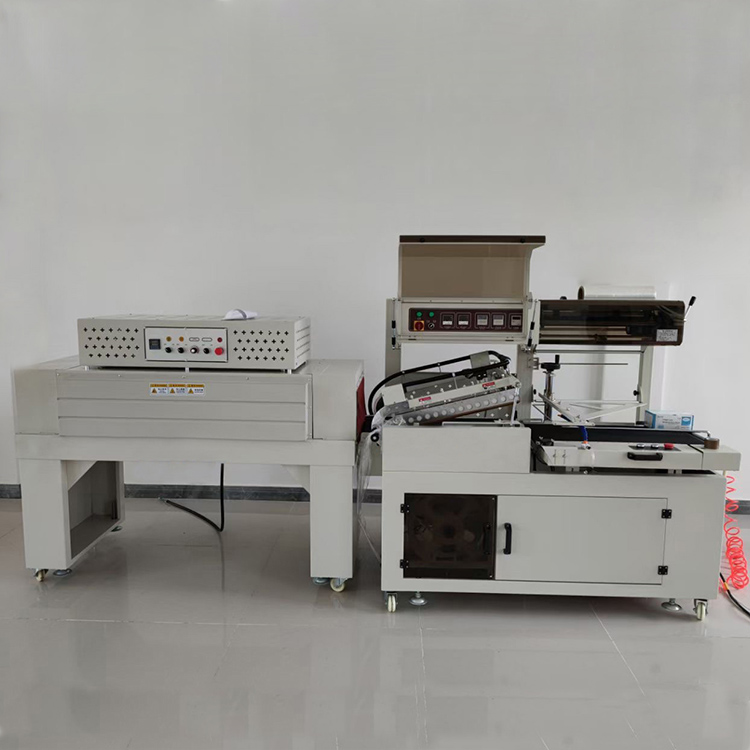

Description of automatic L sealer multi-function packaging machine
Features of automatic wrapping machine shrink packaging machine
1. Adopt high quality transducer to control the conveying speed.

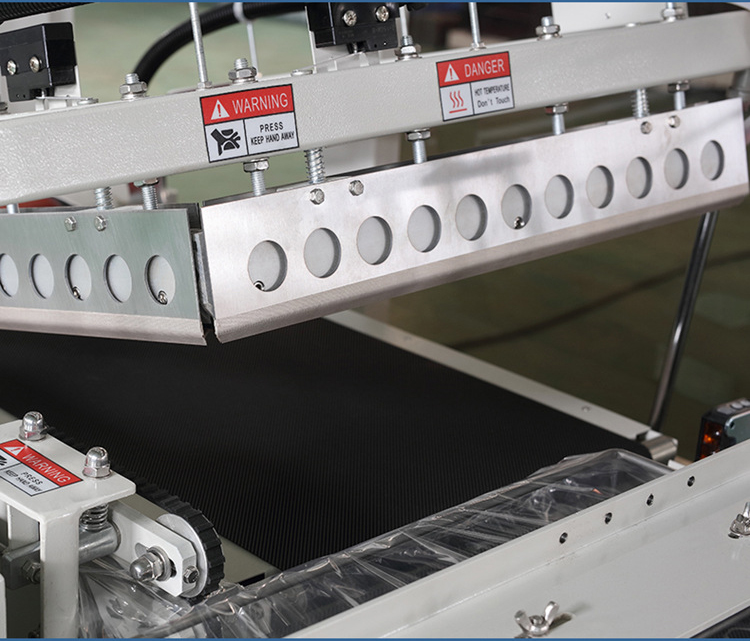

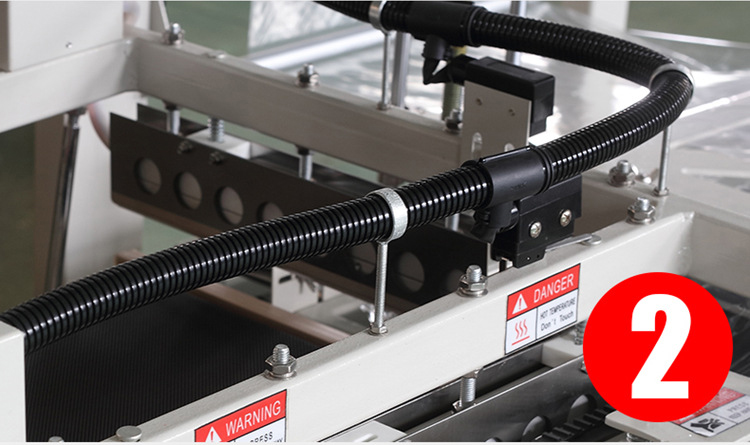

2. The stainless steel heater ensure the efficient and long service time.
3. Adopt planetary reduction gear and high power motor to ensure stable conveying without shaking.

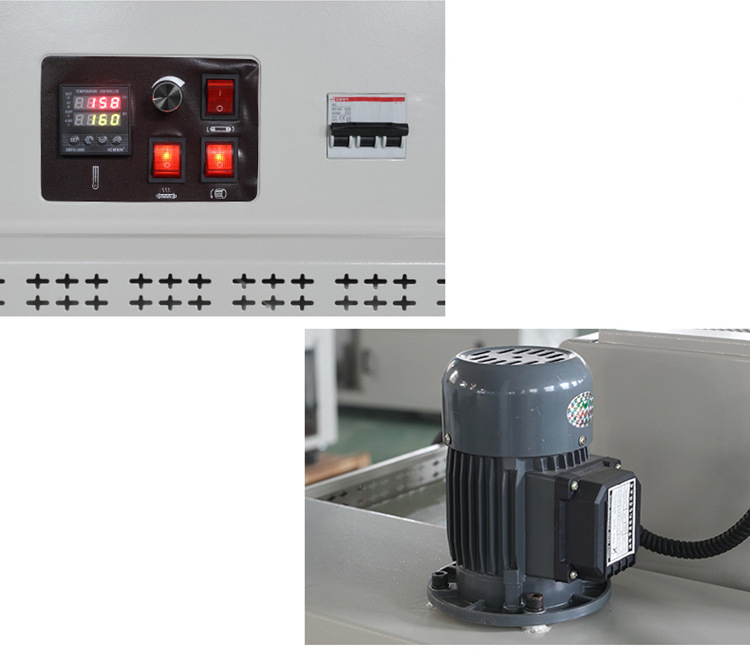

4. Adopt large cooling fan to cool and shape products quickly after shrinking.
5. Sealing, cutting and shrinking in one time.
6. Voltage can be customized.
Specifications:

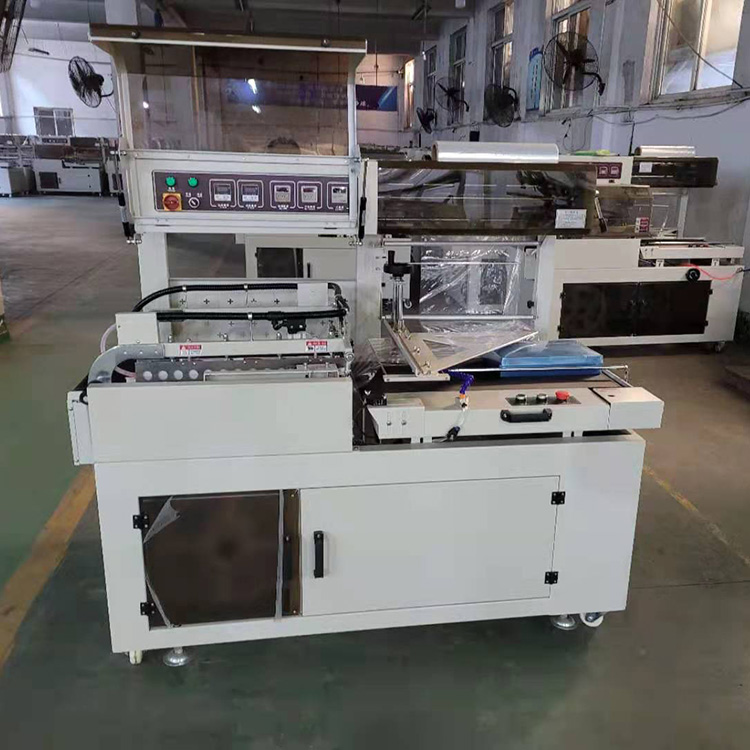

Model | FQL-450A Automatic L Sealer |
Voltage | 110V/220V/50-60Hz |
Power | 1.35KW |
Sealing time | 0.2-1s |
Film width | ≤550mm |
Packaging speed | 20-30pcs/min |

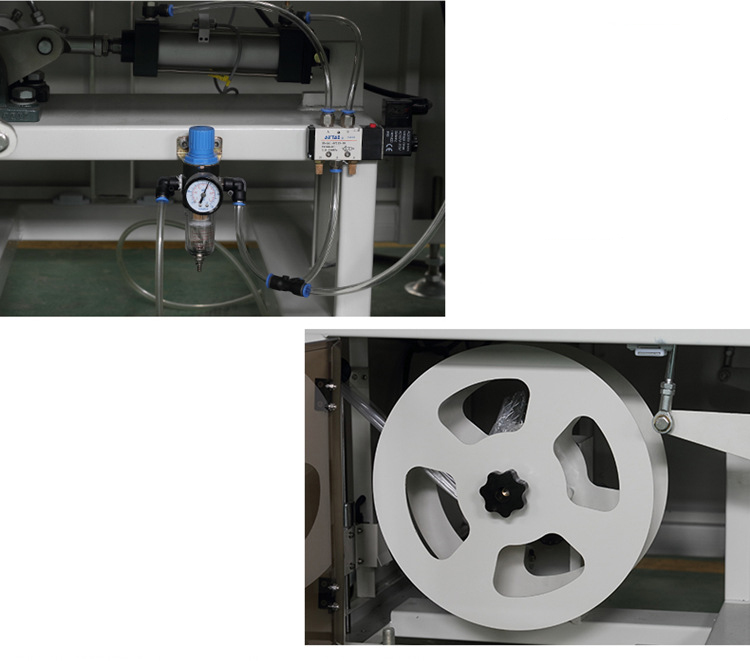

Working air pressure | 0.6-0.8MPa |
Film material | POF, PE (customize) |
Cutter size | L550mm x W450mm |
Max packaging size | L480mm x W320mm x H150mm |
Weight | 300kg |
Dimension | L1750*W880*H1450mm |

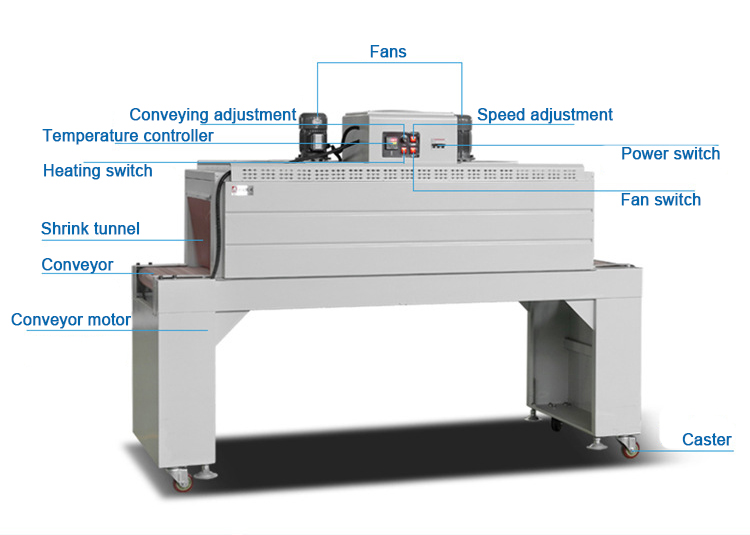

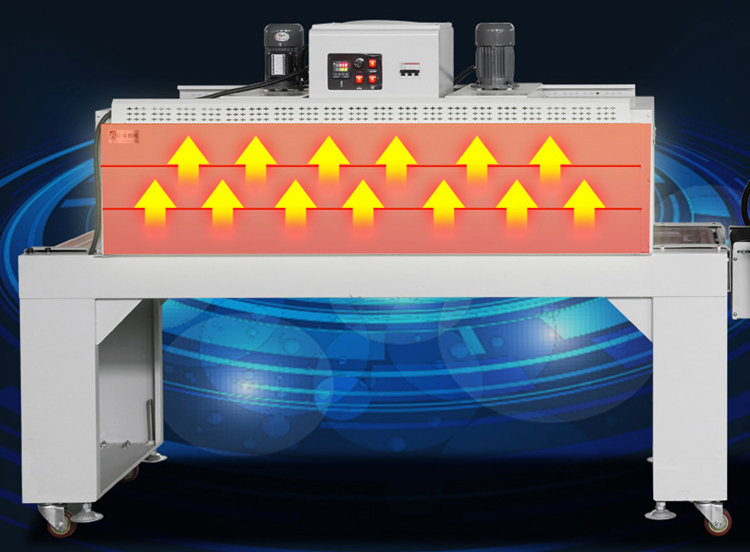

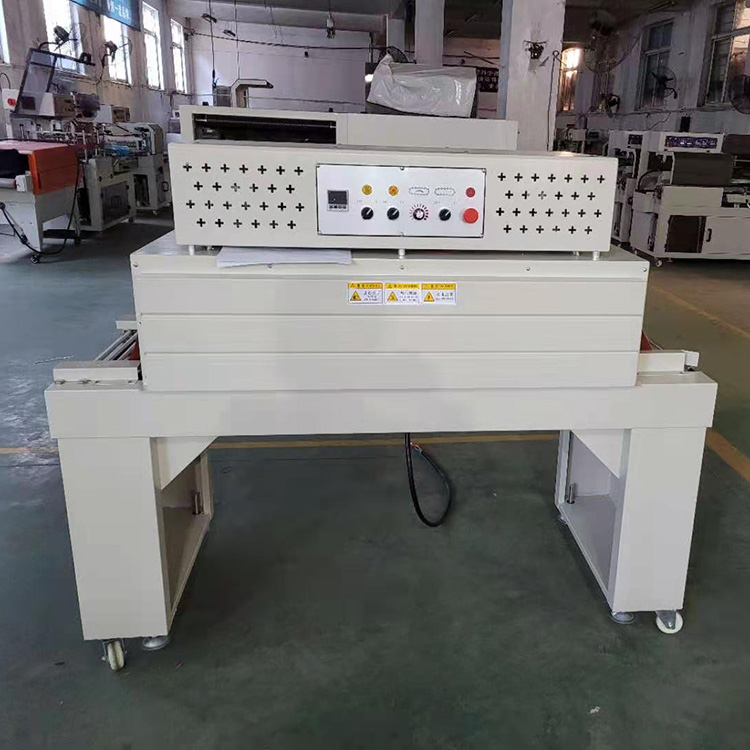

Model | BS-4522N Shrink Wrapper |
Voltage | 380V/50-60Hz |
Power | 9KW |
Speed | 0-10m/min |
Conveyor load capacity | 10kg |
Tunnel size | L1200*W450*H220mm |
Weight | 200kg |
Dimension | L1700*W700*H1450mm |
